The Victron and Pylontech energy storage system enables you to maximize the use of energy generated by your PV installation.

It’s perfect for:

• Existing photovoltaic installations, for people who are looking for new opportunities to expand their system with energy storage.
• Those looking for safety: ensures uninterrupted power supply, thanks to the UPS function.
• Those who appreciate flexible solutions and plan to expand the installation in the future.
• Drivers of electric or hybrid cars.
• Companies seeking to reduce peak loads—thanks to the power assist function.
• Those who want to manage the installation from anywhere.

User benefits:

 INDEPENDENT ON ELECTRICITY SUPPLIES EVEN 100% The set ensures efficient use of the energy generated. If energy generation from photovoltaic systems exceeds the consumption, surplus energy will be stored in batteries. However, if the energy storage system is fully charged, the surplus energy generated by photovoltaic systems will be fed into the grid.

CHARGE YOUR BATTERIES WHEN ELECTRICITY IS CHEAPEST It is possible to specify any period of time during the week when the user can charge the batteries to a specific level (e.g., every Saturday from 10:00 PM to 80%). This is possible regardless of the energy storage mode.

SAFETY Thanks to the UPS function, in case of loss of the primary power supply from the grid, the set provides backup power to the loads.

SCALABILITY Possibility to expand the battery bank and installation capacity at any time.

Features of included devices*:

• Energy Storage.
• UPS: island operation in case of a mains power failure.
• Power assist: in case of high power consumption, energy is additionally drawn from the battery.
• Remote monitoring, supervision, and management of the system.

Set features*:

• Flexibility: high power overload capacity in UPS mode.
• Technology: modern lithium battery technology.
• Accessibility: ability to remotely monitor and control from anywhere in the world.
• Ease of installation: pre-programmed solution, ready to connect.

Warranty:

10-year warranty on Pylontech batteries and 5-year warranty on Victron Energy components.

• 2 x RS485 to USB interface 5 m
• 1 x VE.Can to CAN-bus BMS type A Cable 1.8 m
• 1 x A set of cables for batteries Pylontech US

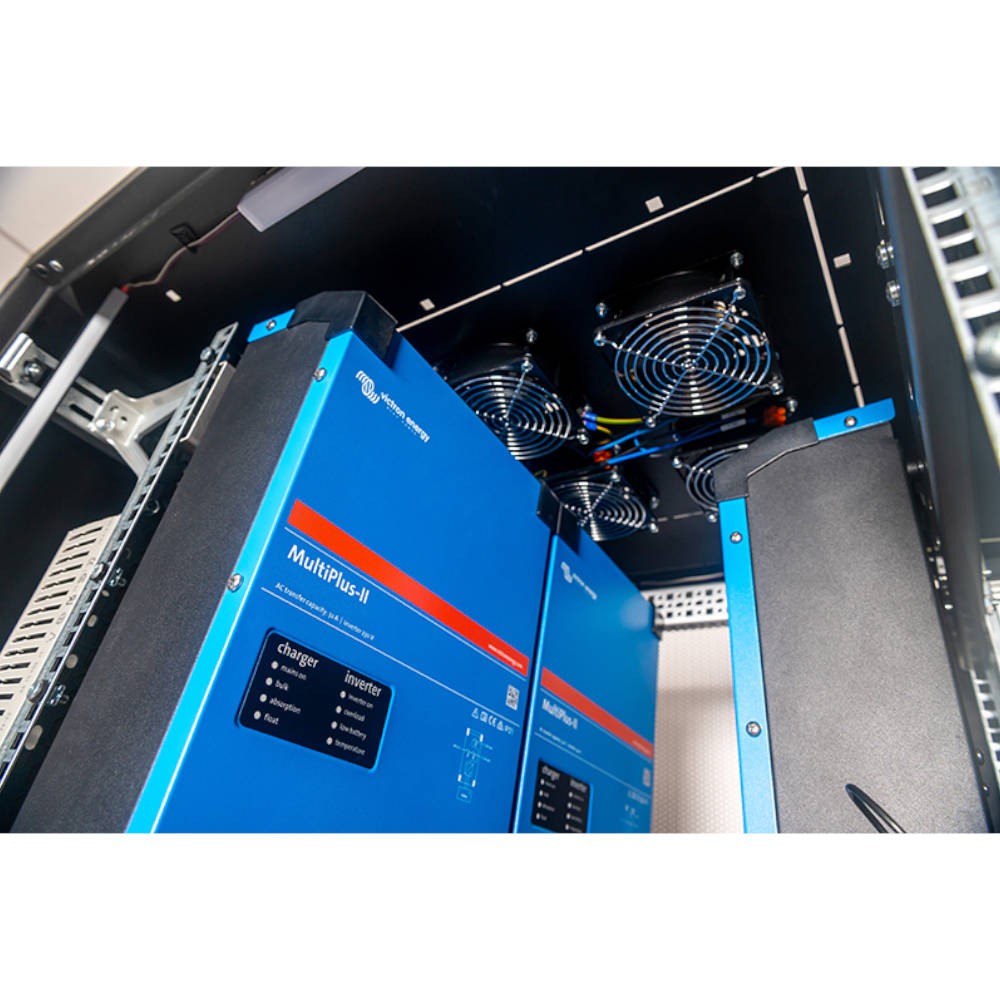

• 3 x MultiPlus-II 48/5000/70-50 230 V
• 2 x Energy Meter ET340 - 3 phase - max 65 A/phase
• 4 x Battery Pylontech US3000C
• 2 x RJ45 UTP Cable 1,8 m
• 1 x RJ45 UTP Cable 3 m
• 1 x CERBO GX
• 1 x DIN35 adapter small (2 pcs)

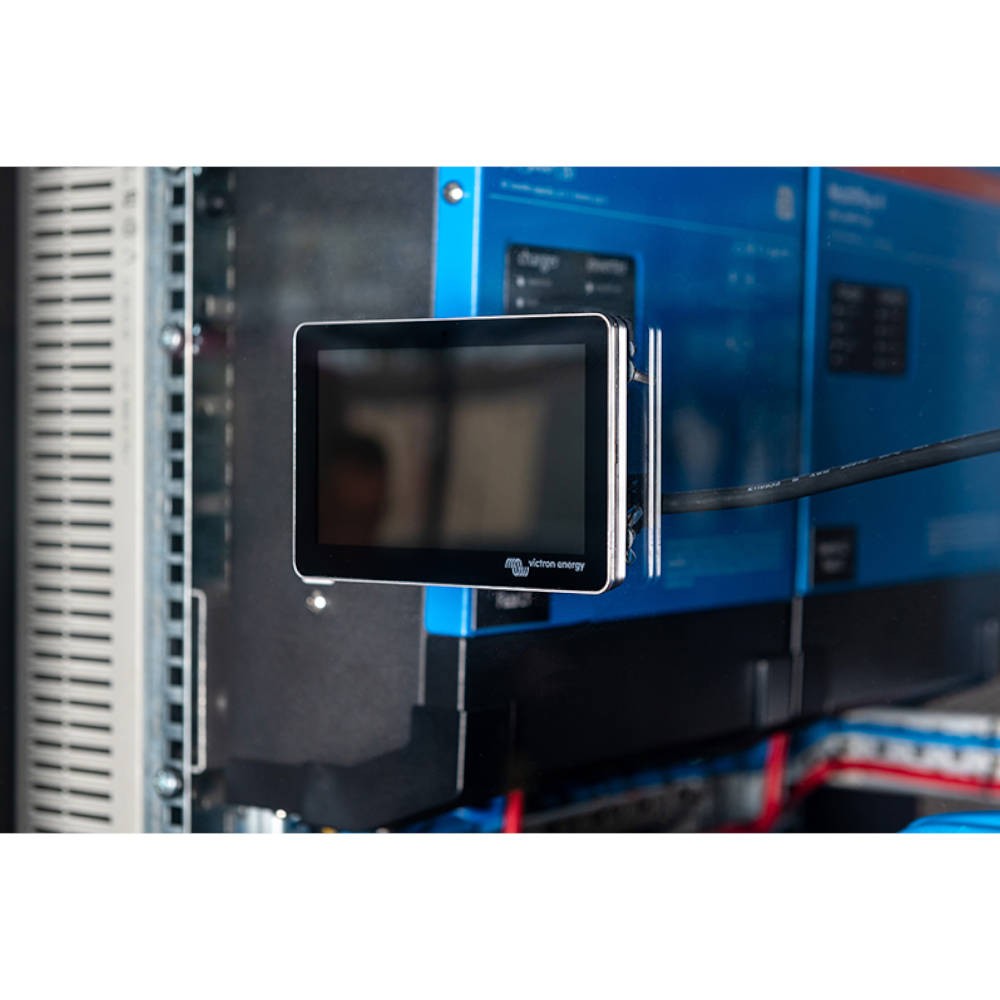

• 1 x GX Touch 70
• 1 x GX Touch 70 Wall Mount
• pre-installation service

Example of how to connect the set:

* The set does not include photovoltaic modules or a photovoltaic inverter.

1. Pre-installation includes the installation of cables, electrical protectors and programming the set according to customer's needs.

2. As the set needs to be shipped, it is not possible to fully assemble it on our premises. Some components must be installed on site.

3. The set does not include AC electrical protectors and AC cables. These elements ought to be selected separately.

4. In case of difficulties with availability of standard MultiPlus inverters or controllers, we can offer replacement of the components with those available from the manufacturer (e.g., MultiPlus GX). Such a change will increase the price and requires individual arrangements. The change will not affect the functionality of the set.
