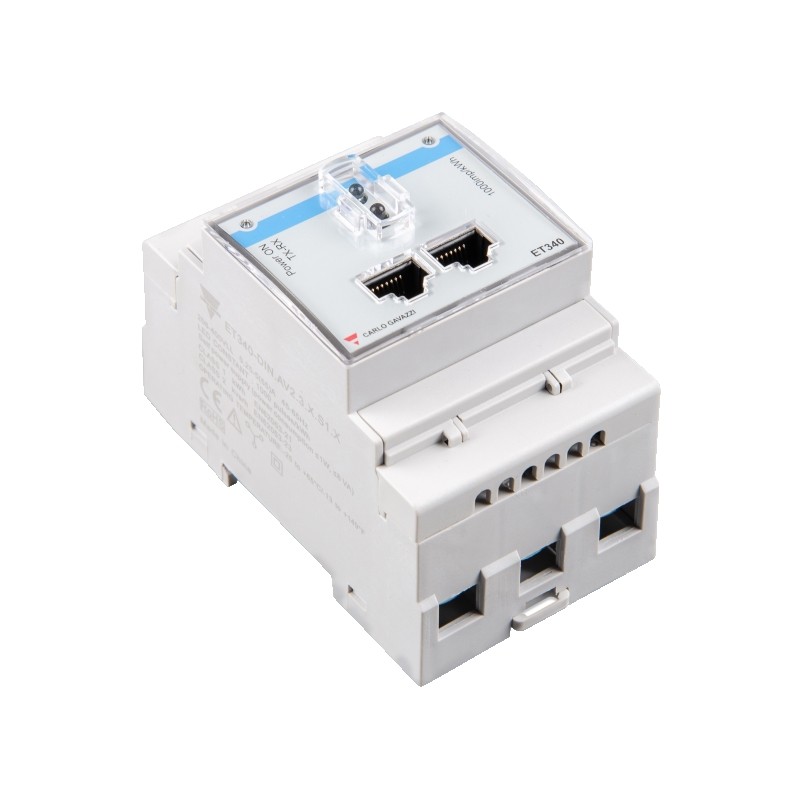

Contatore di energia ET340 Trifase 65 A
Produttore:
INDEX: REL300300000
The ET340 energy meter for single-phase current with a maximum current of 65 A is normally used in energy storage systems. It can measure imported and exported energy or be programmed to measure only imported energy. Enclosure for mounting on a DIN rail with IP51 front protection rating. An operating hours counter is available to link energy to corresponding operating hours.
Distinguishing features of the product:
Class 1 (kWh) according to EN62053-21
Modbus RS485 port (screw terminals and double RJ45 connector)
Optical port
Digital input (for tariff management)
Easy connection or detection of current flow direction
Internal power supply
Operating hours counter
| Dimensioni [mm]: | 140.0 x 105.0 x 70.0 |
|---|---|
| Peso [kg]: | 0.23 |
| Corrente massima [A]: | 65 |
|---|---|
| Numero di fasi: | 3 |
