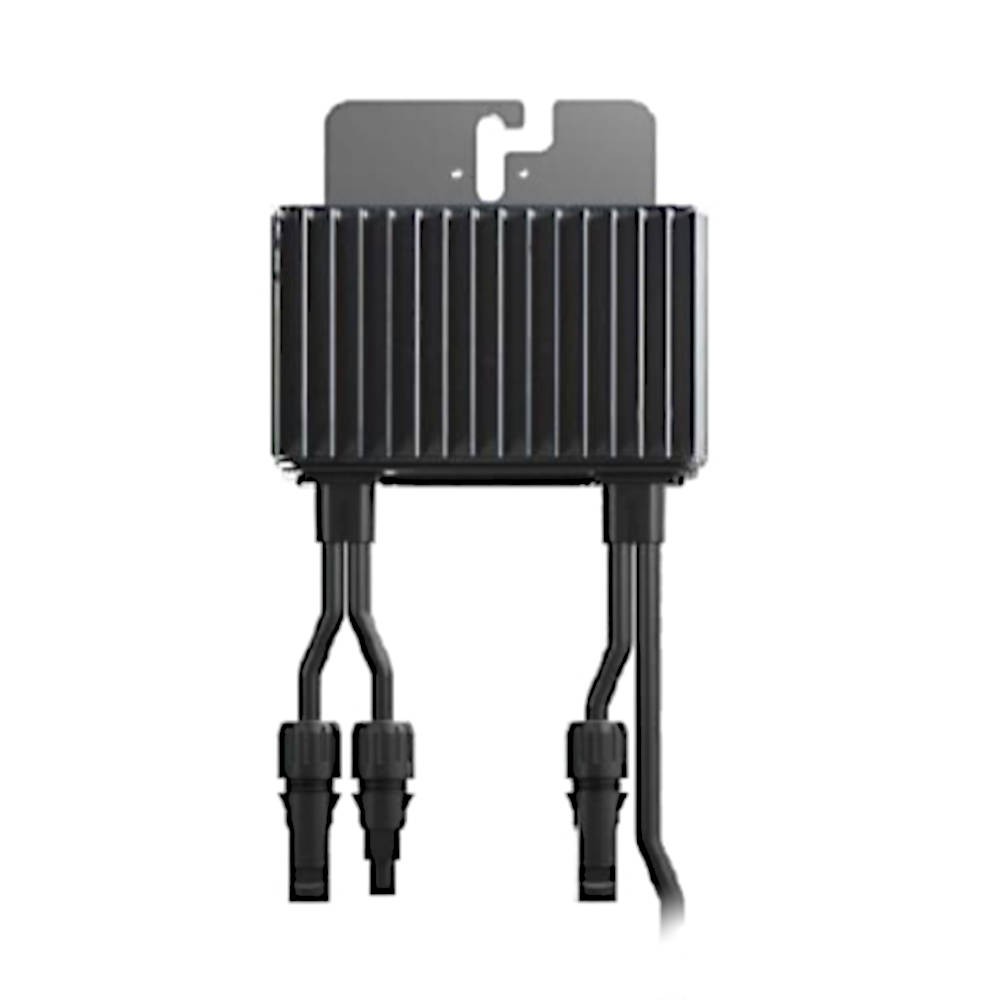

Power optimiser S1000-1GMXMBT SolarEdge
Manufacturer: SolarEdge
INDEX: S1000-1GMXMBT
SolarEdge S1000 Power Optimiser helps to increase energy production from every module in your photovoltaic installation.
It has been specifically designed to work with SolarEdge inverters for the purpose of building commercial, large-scale photovoltaic installations. It is one of the few solutions that prevent problems with PV module mismatch, partial shading, and all other cases that periodically hinder the optimal operation of photovoltaic panels. The use of power optimisers also directly affects the safety of installers during installation, service, or in the event of a fire by reducing the voltage of each PV module to safe values.
- Up to 25% more energy
- High efficiency level of 99.5%
- Support for bi-facial PV modules and high-power modules
- Allows for the use of up to 2x longer strings reducing the amount of wiring by 50%
- Quick installation with a single screw
- Separate monitoring for each module allows for easier system management
- Reduces the voltage of each module - especially important during installation, service, or in case of fire
- Installation design system maximally utilizes the surface area for greater yields
- Applied technology prevents problems in case of module mismatch or partial shading
Cable lengths:
- input cables: 0,1 m and 1.3 m
- output cables: 4.7 m (+), 0.1 m (-)
NEW S series optimisers:
| Application: | Optymalizacja |
|---|---|
| Supported number of PV modules: | 2 |
| Weight [kg]: | 1.06 |
| Dimensions [mm]: | 129.0 x 165.0 x 52.0 |
| Maximum short-circuit current per MPPT [A]: | 15 |
|---|---|
| Power [W]: | 1000 |
| Max. voltage [V]: | 125 |
| Min. MPPT voltage [V]: | 12.5 |
| Max. MPPT voltage [V]: | 105 |
| Max. efficiency [%]: | 99.5 |
|---|
| Chain length - three-phase inverter / number of optimisers and PV modules: | 14 - 30 |
|---|
