TW Solar is a modern company committed to the research and development of solar energy products, with long-standing experience and a high level of technological advancement in silicon cell production, with monitored manufacturing quality, used in the construction of photovoltaic panels sold worldwide.

The TW Solar 500 W N-type module has been designed using Multi-busbar technology, increasing output power by over 5 W, and Half-cut technology, which reduces power losses, providing an additional 5-10 W gain. An additional solution to improve module efficiency, High-Density Encapsulation, has been applied to achieve a 0.15% increase. Compared to standard PV modules of the same class, TW Solar has no equal.

N-type cells are enriched with phosphorus, resulting in a lower light-induced degradation (LID) rate, ensuring long-term efficiency and greater savings. The new technology also offers a lower temperature coefficient and lower operating temperature on sunny days. Thanks to N-type technology, the manufacturer provides a 30-year energy production warranty.

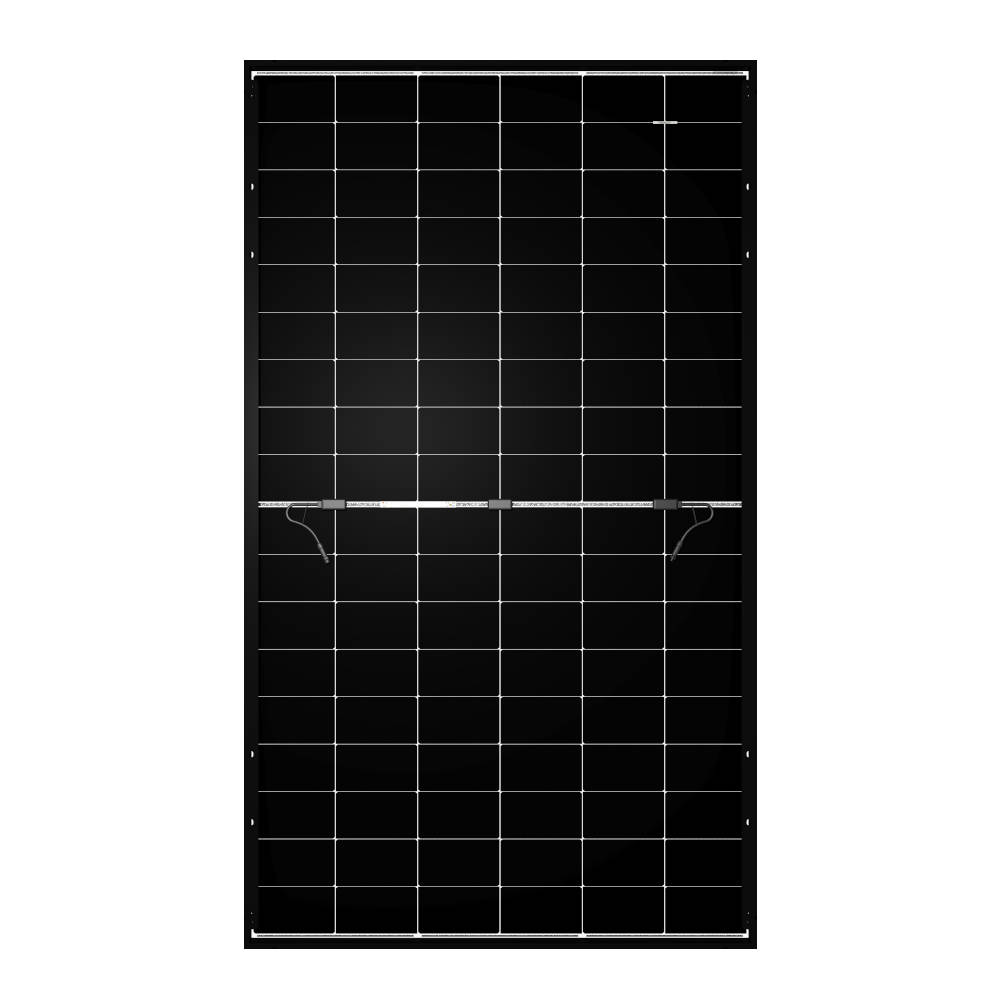

The TW Solar 500 W module consists of 108 monocrystalline photovoltaic N-type cells housed in an anodised, lightweight aluminium alloy frame, resistant to corrosion, and covered with a 2 mm glass panel with high light transmittance. The glass is coated with an anti-reflective (AR) layer and thermally reinforced. All this contributes to a 15-year product warranty and a 30-year power warranty on energy production.

Cables of 1200 mm (+) and (-) are routed from the IP68 junction box and terminated with an MC4 connector. The module holds numerous certifications: IEC61215/61730, IEC62804 (PID), IEC61701 (Salt), IEC62716 (Ammonia), IEC60068-2-68 (Sand), as well as ISO 9001, ISO 14001, ISO 45001, ISO 50001. The module fully complies with the IEC 62941 quality system standard.

Distinguishing product features:

• Monofacial version
• 30-year output power warranty
• N-type cell technology
• Application of Multi-busbar technology
• High and stable efficiency up to 22% thanks to modern technology
• Positive power tolerance up to +5 W
• Excellent performance even in low sunlight conditions
• Half-cut technology for increased output power
• Low susceptibility to PID
• Unique cell structure leads to lower module temperature and higher efficiency
• Snow load up to 5400 Pa and wind load up to 2400 Pa
• No mechanical damage during cell production – lossless laser cutting

TW Solar 500 W N-type is a perfect choice for customers seeking high-quality and high-efficiency modules at an affordable price. The product is suitable for both on-grid and off-grid installations.

 WARNING! RISK OF WARRANTY LOSS

If you do not follow the manufacturer's instructions during installation, you will lose your warranty.

Solfinity is not responsible for improper PV module installation. The installation manual can be found in the Attachments section.
