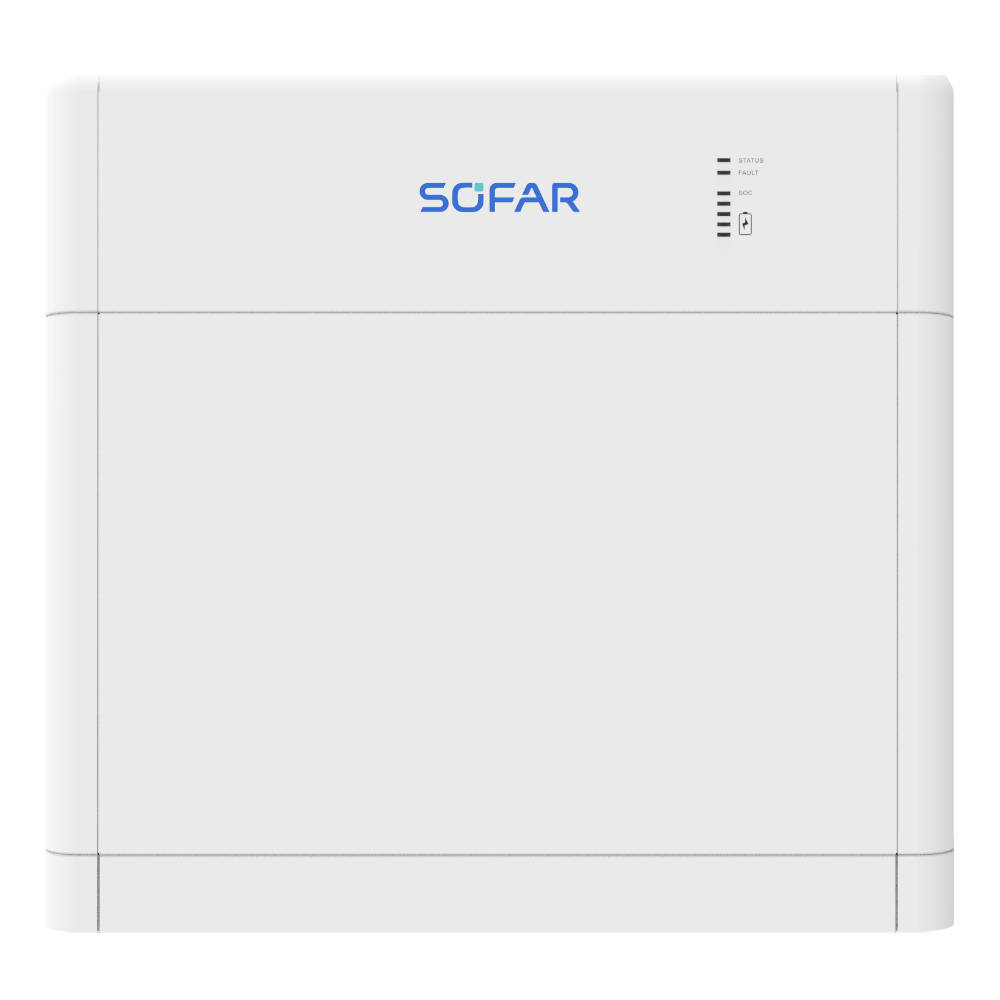

BTS 5K SOFAR battery module
Manufacturer: Sofar
INDEX: 930.00400000-0
BTS 5K is a high-voltage battery module which is used to build modern and smart BTS E5-E20 energy storage with a utility capacity from 5 to nearly 20 kWh. To work properly, it must be combined into a set with the BTS 5K-BDU control unit.
The BTS E5-E20 energy storage is a set consisting of 1 to 4 high-voltage batteries, depending on the requirements, and made in the LiFePo4 technology. They have been designed for use as home energy storage. It is compact and easy to use. It works with Sofar, HYD, and ME hybrid inverters. BTS power banks are the perfect solution in favour of self-consumption.
Distinctive features of the BTS E5-E20 power storage:
- Modular and integrated construction for easy transport and assembly
- Flexible battery capacity with the possibility of extending from 1 to 4 BTS 5K modules
- Turning ON and OFF with one button
- Maximum battery power thanks to set optimization
- Low energy consumption by the battery in sleep mode
- Designed specifically for ME / HYD 5K...20KTL-3PH inverters
| Battery Scalability: | do 4 jednostek |
|---|---|
| Battery technology: | Litowo-jonowy |
| Weight [kg]: | 50 |
| Dimensions [mm]: | 708.0 x 170.0 x 420.0 |
| Continuous output current [A]: | 15 |
|---|---|
| Maximum output current (10 seconds) [A]: | 25 |
| Nominal battery voltage [V]: | 96 |
| Usable capacity [kWh]: | 4.75 |
